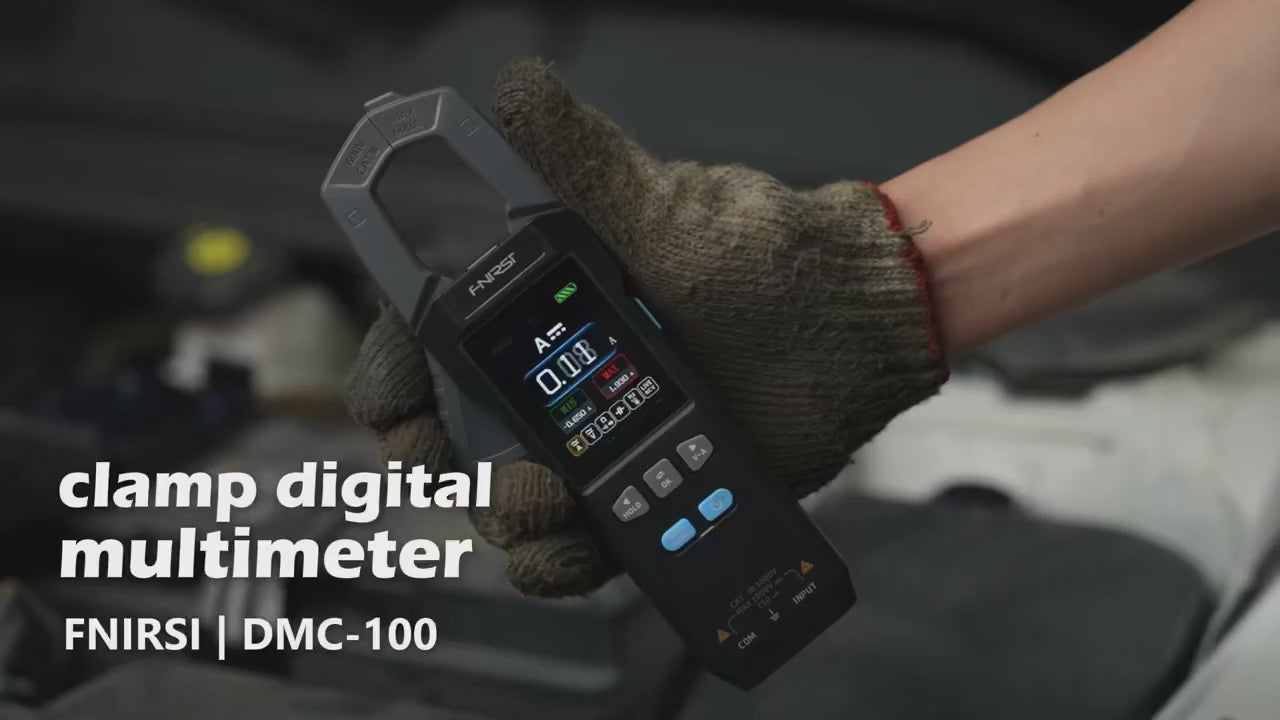

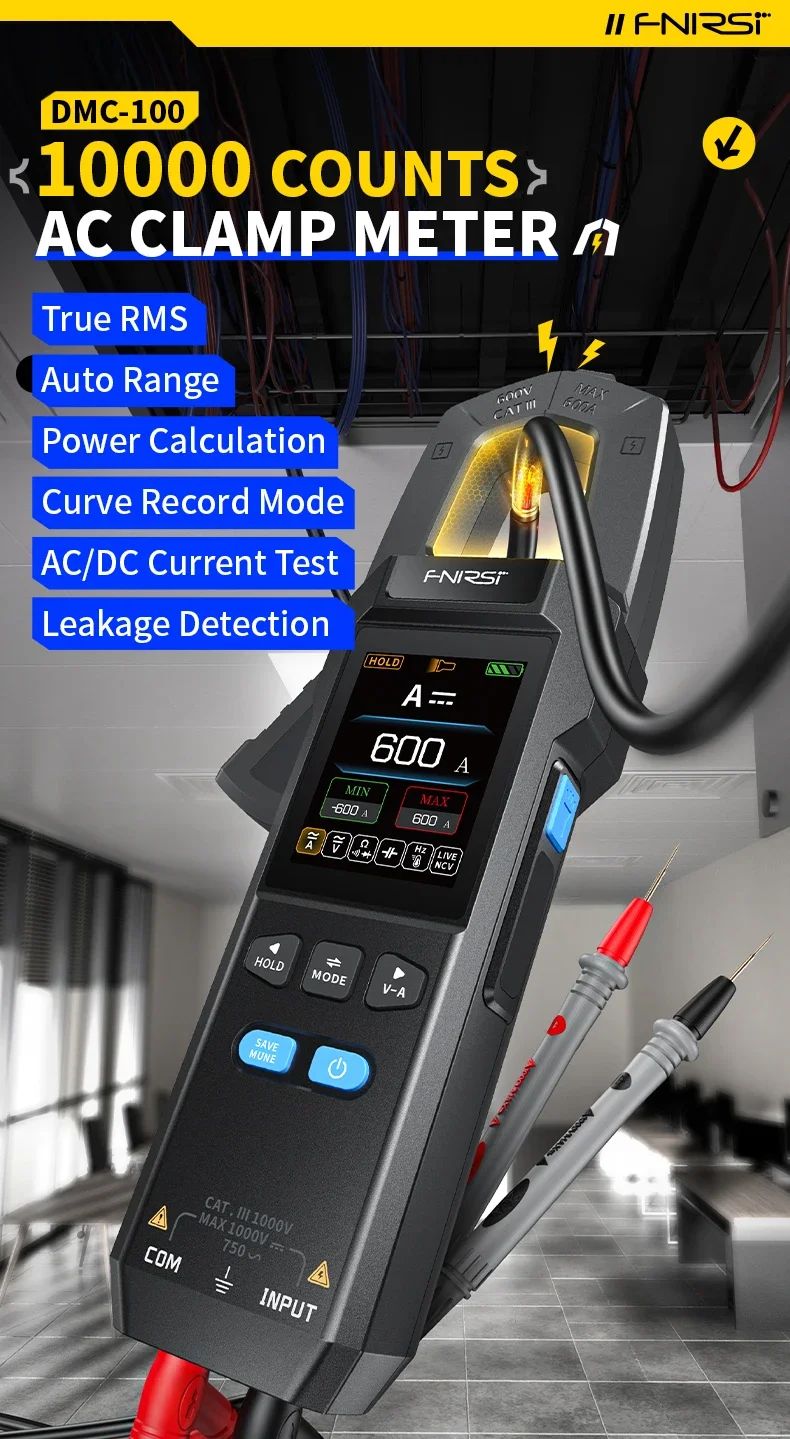

FNIRSI DMC-100 — Professional Digital Clamp Meter 10000 Counts
High-precision clamp meter with 10,000 counts, 2.0" TFT color screen, dual-chip design, and 1500mAh USB-C rechargeable battery. Covers 750V voltage and 600A current — simultaneous voltage + current measurement with automatic power calculation.
⚡ Key Functions
✓ AC/DC Current — up to 600A, 25mm jaw opening
✓ AC/DC Voltage — up to 750V
✓ Temperature — -55–+1300°C via probe
✓ Resistance, Capacitance, Frequency, Diode, Continuity
✓ NCV & Live Wire detection
✓ Waveform display — curve recording, store up to 30 data sets
✓ Power measurement mode — auto calculates voltage × current
✓ Anti-burn protection — full-range smart overload protection

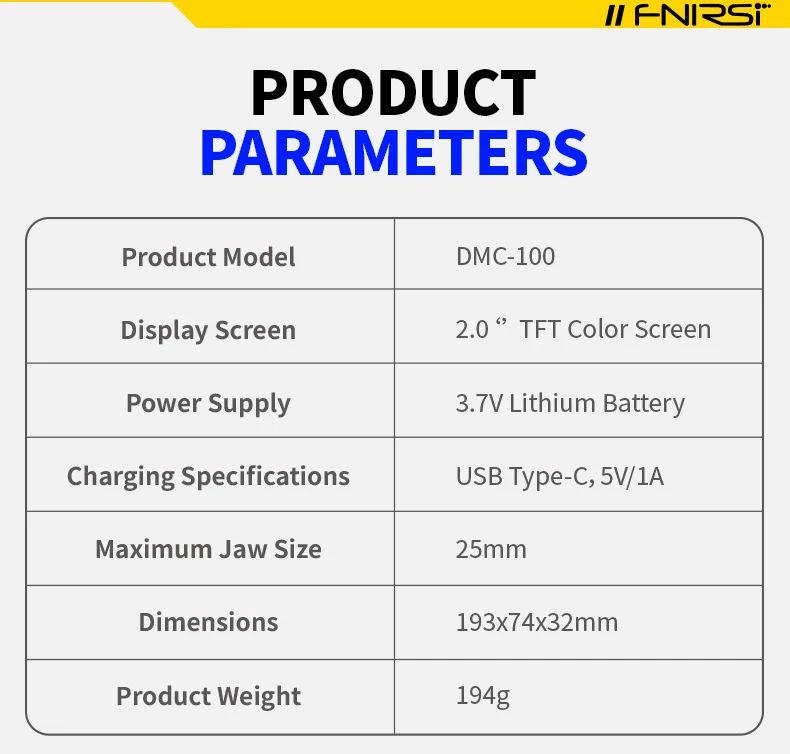

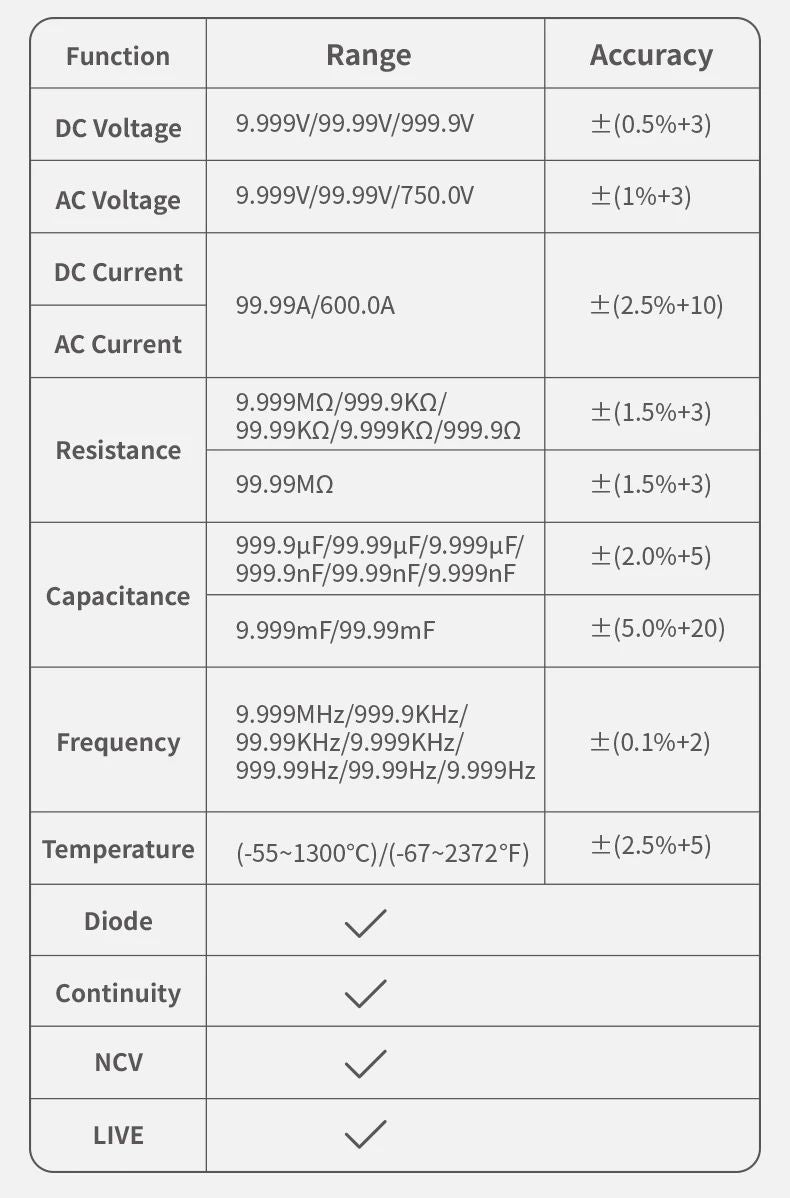

📊 Technical Specifications
| Model | FNIRSI DMC-100 |
| Display | 2.0" TFT color, 240×320px |
| Counts | 10,000 |
| True RMS | Yes |
| DC/AC Voltage | up to 999.9V / 750V |
| DC/AC Current | up to 600A |
| Resistance | 999.9Ω–99.99MΩ |
| Capacitance | 9.999nF–99.99mF |
| Frequency | 9.999Hz–9.999MHz |
| Temperature | -55–+1300°C / -67–+2372°F |
| Jaw size | 25mm |
| Battery | 1500mAh Li-ion, USB Type-C |
| Auto power off | OFF / 5 / 15 / 30 min |
| Size | 193 × 74 × 32mm |
| Weight | 194g |
🎯 Perfect For
Engineering maintenance · Laboratory research · Automotive diagnostics · HVAC · Industrial electrical panels · Home electrical work

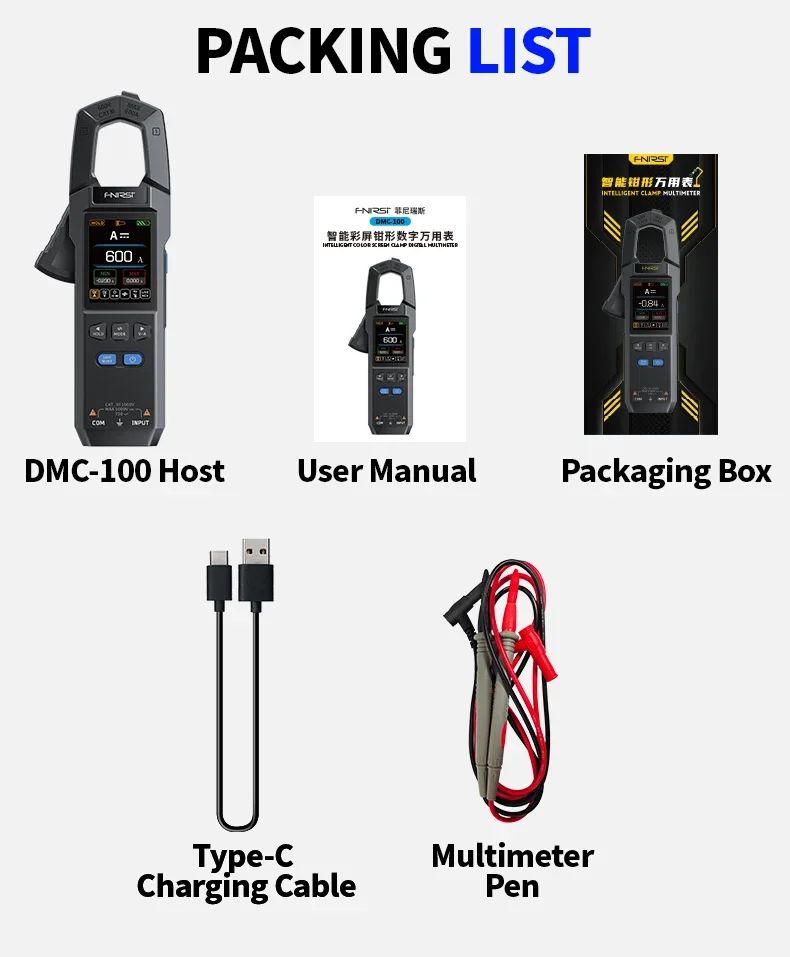

📦 Package Includes
1× DMC-100 Clamp Meter · 1× Test probes · 1× Temperature probe · 1× Type-C cable · 1× User manual
