ANENG M115 Mini Digital Multimeter 4000 Counts - Compact AC/DC Voltage Tester with NCV & Ohm Resistance | Volt Edge™

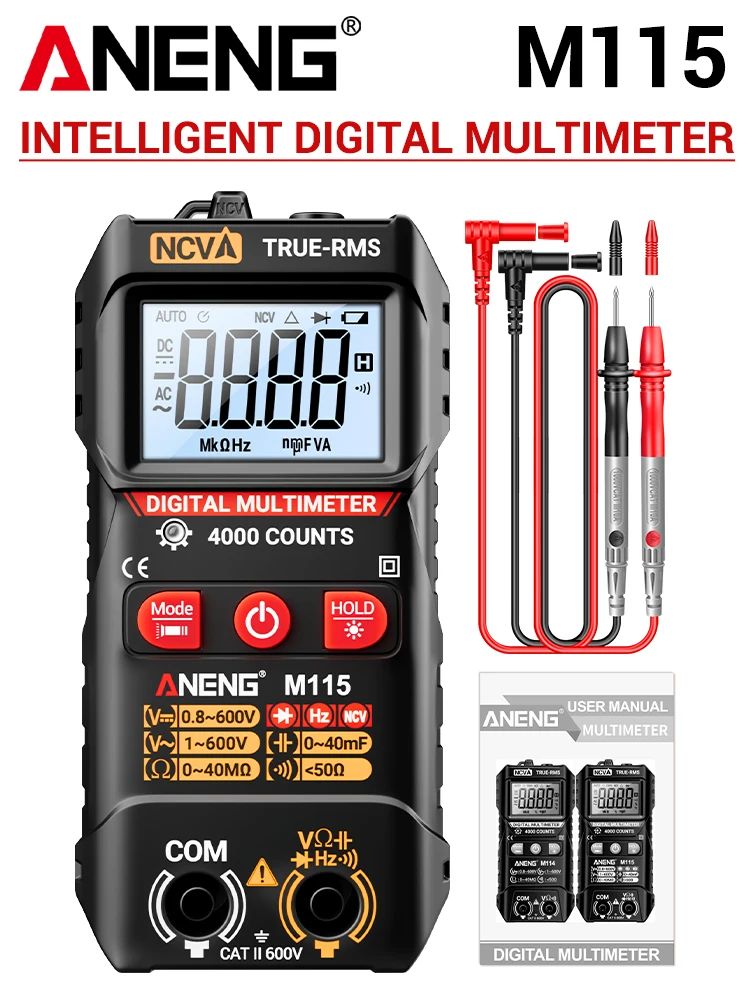

ANENG M115 Mini Digital Multimeter - 4000 Counts High Precision

The ANENG M115 Mini Digital Multimetercombines professional-grade accuracy with ultra-compact design. Featuring an impressive 4000 count display, True RMS measurement, and intelligent auto/manual ranging, this multimeter delivers precise readings for AC/DC voltage, resistance, capacitance, frequency, and more - all in a pocket-sized package that weighs just 67 grams.

Advanced NCV Non-Contact Voltage Detection

Three-Level Intelligent NCV Detection

The M115 features advanced non-contact voltage detection with a three-tier warning system for enhanced safety:

• Green Light - Weak signal detected (low voltage or distant source)
• Yellow Light - Medium signal detected (moderate voltage proximity)
• Red Light + Beeping - Strong signal detected (high voltage or close proximity)

When approaching AC voltage, the indicator light flashes and emits an audible beeping alarm, allowing you to safely identify live circuits without direct contact - perfect for preliminary safety checks before working on electrical systems.

Complete Device Overview

Intelligent Design Features:

• NCV Detection Sensing Area - Top-mounted sensor for non-contact voltage detection
• Built-in Flashlight - Illuminate dark electrical panels and work areas
• Low Power Symbol - Battery status indicator
• Backlit Screen - High-contrast LCD display with bright backlight
• Indicator Light - Three-color NCV warning system
• Power Switch - One-touch on/off control
• Mode/Hold Buttons - Function selection and data retention
• Test Pen Sockets - Standard banana jack connections (COM and VΩHz)

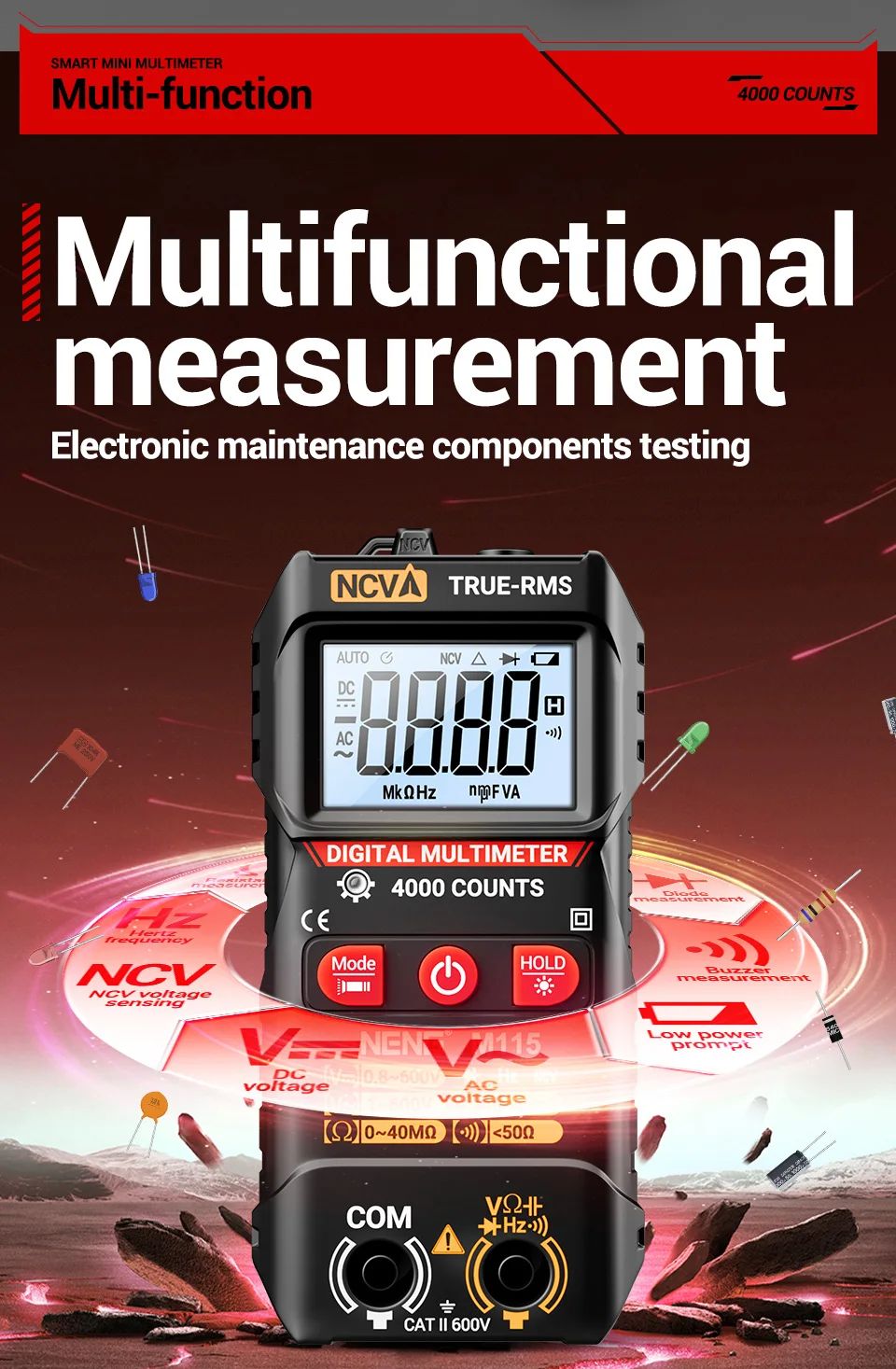

Multifunctional Measurement Capabilities

8 Professional Testing Functions:

• Diode Testing - Verify semiconductor components with visual LED indication
• Hz Frequency Measurement - 10.00Hz to 4.000MHz range for signal analysis
• Capacitor Testing - 0-40mF range with discharge safety feature
• NCV Detection - Non-contact voltage sensing on electrical panels
• AC Voltage - 1.000V-600V (auto) / 0.000V-600V (manual)
• DC Voltage - 0.800V-600V (auto) / 0.000V-600V (manual)
• Resistance - 0Ω-40MΩ range for component testing
• Continuity Test - Audible buzzer for circuit verification

Complete Technical Specifications

Model	ANENG M115 Mini Multimeter
Display	4000 Counts LCD with Backlight
DC Voltage Range	Auto: 0.800V-600V | Manual: 0.000V-600V
DC Voltage Accuracy	±(0.8% + 3d)
AC Voltage Range	Auto: 1.000V-600V | Manual: 0.000V-600V
AC Voltage Accuracy	±(0.8% + 5d)
Resistance Range	0Ω - 40MΩ
Resistance Accuracy	±(1.0% + 5d)
Capacitance Range	0 - 40mF
Capacitance Accuracy	±(4.0% + 5d)
Frequency Range	10.00Hz - 4.000MHz
Frequency Accuracy	±(1.0% + 5d)
NCV Detection	Yes (3-level indicator: Green/Yellow/Red)
Diode Test	Yes
Continuity Buzzer	Yes (beeps when resistance < 50Ω)
Flashlight	Yes (built-in LED)
Backlit Screen	Yes (bright LCD backlight)
Data Hold	Yes
Low Power Indicator	Yes
Auto Power Off	15 minutes (no operation)
Safety Rating	CAT II 600V
Material	ABS Plastic
Dimensions	60 × 120 × 28mm (2.37" × 4.72" × 1.10")
Weight	67g (2.36 oz) - Ultra Lightweight!
Power Supply	2 × AAA Batteries (not included)
Color	Black with Red Accents

15 Professional Features in One Compact Tool

Complete Feature Set:

1. DC Voltage Measurement
2. AC Voltage Measurement
3. Resistance Testing
4. Capacitance Measurement
5. On-off Continuity Beep
6. Diode Testing
7. Hertz Frequency Analysis
8. NCV Non-Contact Detection
9. AUTO/Manual Ranging
10. 4000 Count High Precision
11. Built-in Flashlight
12. Backlit Bright Screen
13. Low Power Prompt
14. Data Retention (Hold)
15. Auto Power Off (15 min)

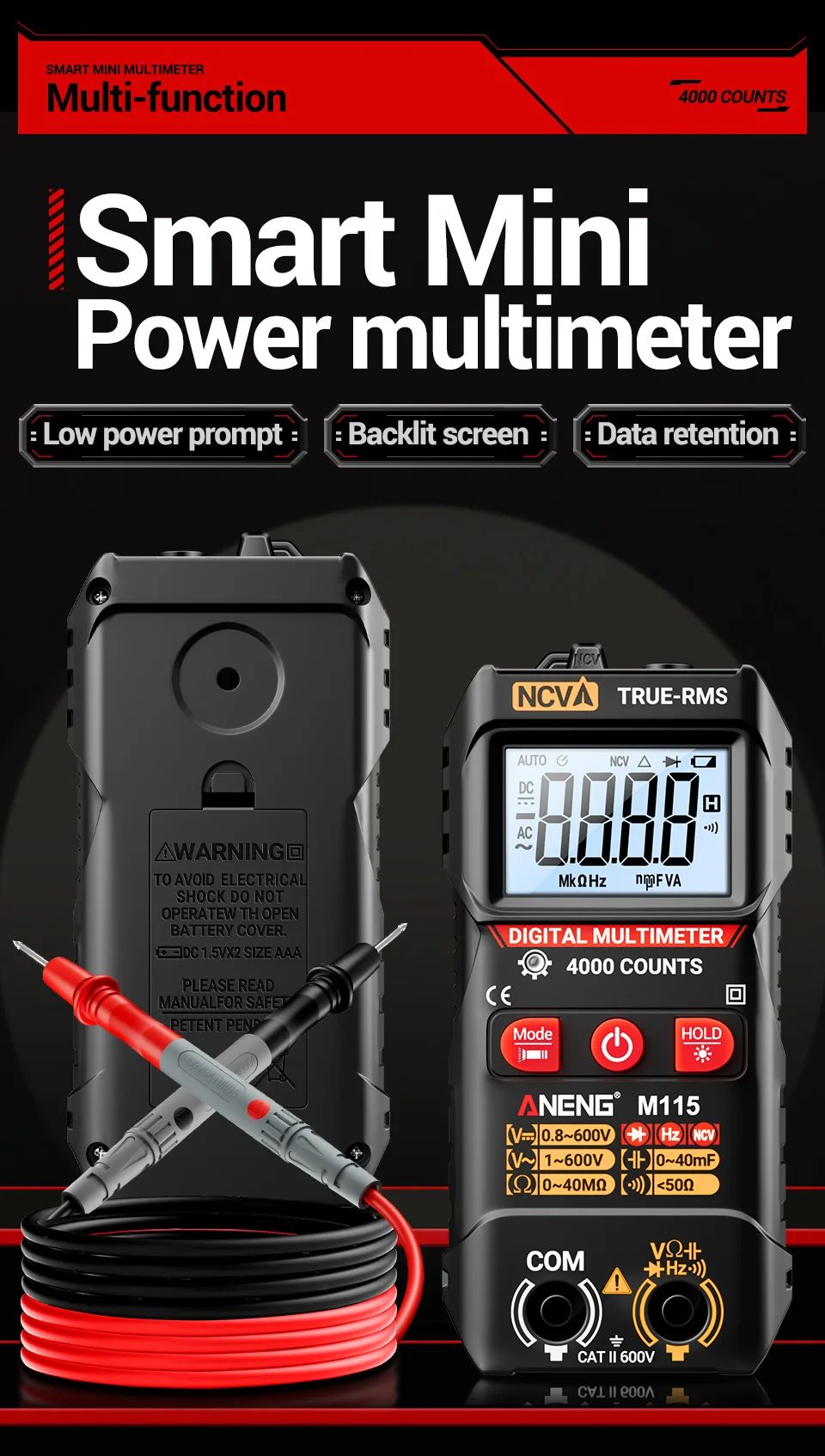

Smart Mini Design - Maximum Portability

Why Choose the M115 Mini?

• Automatic/Manual Integration - Switch between auto-ranging convenience and manual control
• Buzzer/Diode/Capacitor - Complete component testing capabilities
• Small and Convenient - Fits in your pocket, weighs only 67g
• AC and DC Voltage - Universal voltage testing up to 600V

User-Friendly Smart Features:

• Low Power Prompt - Never run out of battery unexpectedly
• Backlit Screen - Clear visibility in any lighting condition
• Data Retention - Freeze readings for easy recording and analysis

Built-in Flashlight for Dark Work Areas

The integrated LED flashlight illuminates dark electrical panels, crawl spaces, and tight work areas. Combined with the backlit bright screen, you'll have perfect visibility in any environment - no need to carry a separate flashlight!

Premium Quality Construction

Attention to Every Detail:

• LCD Backlit Bright Screen - High-contrast display for easy reading
• Smart Circuit Board ANENG - Professional-grade electronics
• Flashlight Lighting - Integrated LED for work area illumination
• Data Retention Button - Convenient HOLD function
• Battery Life - Efficient power management with 2×AAA batteries

Real-World Applications

DC Voltage Detection - Automotive Example

Four and a half high-precision display enables fast and accurate measurement of automotive battery voltage values. The M115 shows 12.00V on a standard car battery, helping you diagnose charging system issues and battery health with professional accuracy.

NCV Voltage Sensing - Safety First

When approaching AC voltage on electrical panels, the three-level indicator system provides instant visual and audible warnings. The indicator light flashes and emits a beeping alarm sound, ensuring you stay safe while working with live circuits.

4000 Count High Precision

Professional-Grade Accuracy

The 4000 count display (four and a half digits) provides exceptional resolution and precision. Multi-function AUTO automatic/manual integration makes it quick to get started - perfect for both beginners and experienced technicians!

Energy-Saving Auto Shutdown

No operation after booting? The meter will automatically cut off power in about 15 minutes, preserving battery life and ensuring your multimeter is always ready when you need it.

Compact Dimensions - Maximum Portability

Ultra-Compact Design:

• Width: 60mm (2.37 inches)
• Height: 120mm (4.72 inches)
• Thickness: 28mm (1.10 inches)
• Weight: Only 67g (2.36 oz)

The M115 is one of the smallest and lightest professional multimeters available, easily fitting in your shirt pocket, tool belt, or small toolbox compartment.

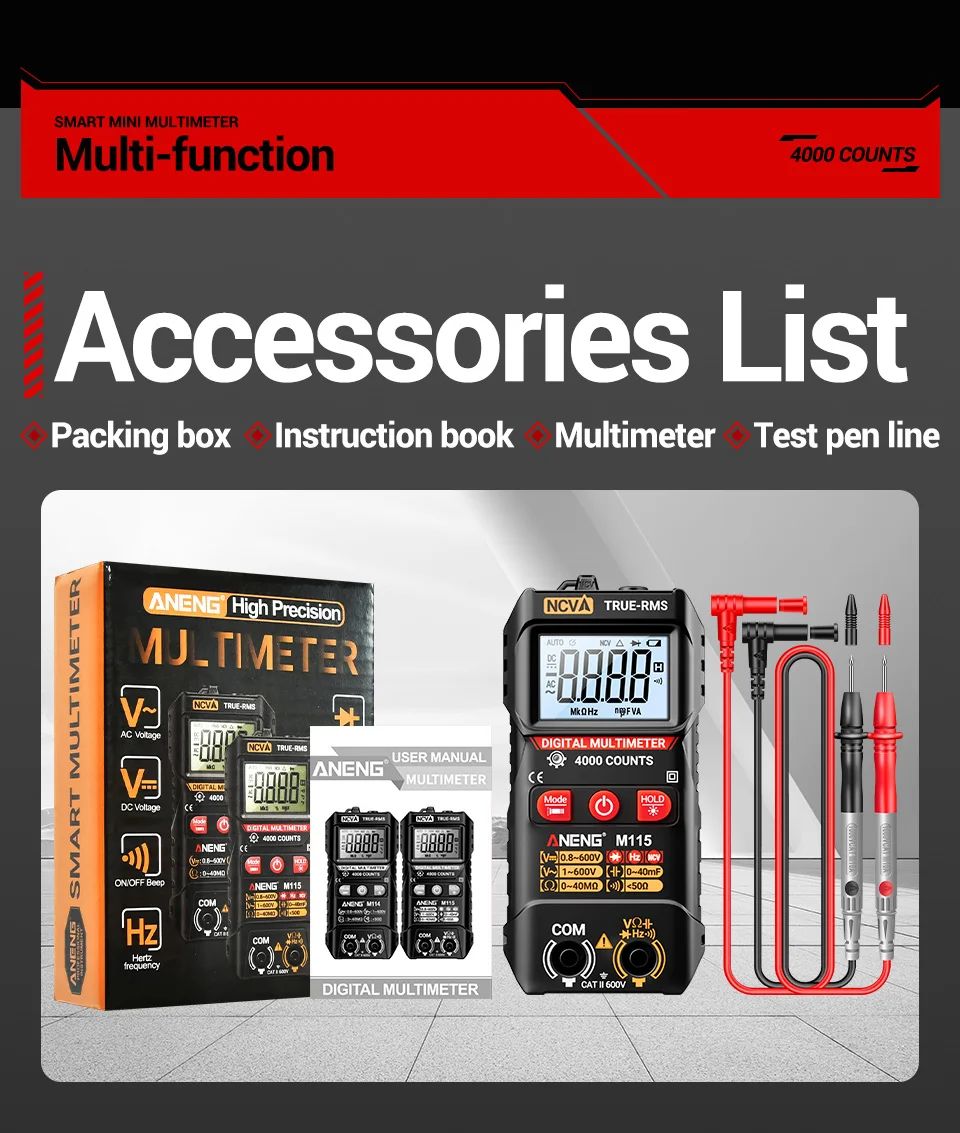

Complete Package Contents

What's Included:

• 1 × ANENG M115 Digital Multimeter
• 1 × Pair of Test Leads (Red & Black)
• 1 × English User Manual with Safety Instructions
• 1 × Premium Retail Packaging Box

Note: 2 × AAA batteries required (not included)

7-Point Customer Service Guarantee:

1. Contact for After-Sales Questions - Professional support team ready to assist
2. Quality Issues - Replacement or refund for manufacturing defects (excludes user damage)
3. Replacement or Refund Process - Simple 4-step resolution procedure
4. Product Not Operating Properly - Video diagnostics and expert troubleshooting
5. Questions About Product Use - Technical assistance and guidance
6. Artificially Damaged Products - Fair assessment and coupon compensation available
7. Positive Review Coupon - Receive ANENG discount coupon for verified reviews

ANENG's professional after-sales team will serve you intimately with satisfactory solutions in a timely manner.

Professional Applications

The ANENG M115 is designed for professionals and serious DIY enthusiasts who demand accuracy, portability, and versatility:

• Residential Electrical Work - Home wiring, outlet testing, circuit troubleshooting
• Automotive Diagnostics - Battery testing, alternator checks, sensor verification
• Electronics Repair - Component testing, PCB troubleshooting, capacitor analysis
• HVAC Systems - Thermostat testing, compressor diagnostics, control circuits
• Industrial Maintenance - Equipment diagnostics, motor testing, frequency analysis
• Field Service - Portable testing for on-site repairs and installations
• Educational Use - Perfect for students and training environments

Why Choose ANENG M115?

Compared to Standard 2000 Count Multimeters:

• ✓ 2× Higher Resolution - 4000 counts vs 2000 counts for more precise readings
• ✓ Ultra-Lightweight - Only 67g, half the weight of standard multimeters
• ✓ 3-Level NCV Detection - Advanced safety feature not found in basic models
• ✓ Frequency Measurement - Up to 4MHz for signal analysis
• ✓ Capacitance Testing - 0-40mF range for component diagnostics
• ✓ True Pocket Size - Smallest professional multimeter in its class

Professional Features at an Affordable Price:

The M115 delivers professional-grade accuracy and features typically found in multimeters costing 2-3× more. With its 4000 count display, True RMS measurement, and comprehensive testing capabilities, it's the perfect choice for technicians who need reliable performance without the premium price tag.

Safety & Certifications

CE Certified - Meets European safety, health, and environmental protection standards

Safety Rating: CAT II 600V

• ✓ Double insulation for user safety
• ✓ Fused input protection
• ✓ Overload protection on all ranges
• ✓ Complies with international electrical safety standards

Important Safety Notes:

• Always verify the meter is functioning properly before use
• Never exceed the maximum rated voltage (600V)
• Use appropriate personal protective equipment when working with live circuits
• Follow all local electrical codes and regulations
• Ensure test leads are in good condition before each use

---
